Comprehensive Network Infrastructure for a Leading ISP
This case study details the design and implementation of a comprehensive network infrastructure for XYZ, a leading Internet Service Provider (ISP) headquartered in City. The project was commissioned to address connectivity, security, and scalability requirements for multiple client sites, including high-security environments such as banks. The implementation integrates state-of-the-art networking technologies and protocols, focusing on high availability, optimal performance, and advanced security standards.
Challenge
XYZ, a rapidly growing ISP, needed to provide high-availability, secure, and scalable connectivity for multiple clients with diverse requirements, including high-security financial institutions. Key challenges included ensuring WAN redundancy, implementing advanced routing and security, and enforcing strict access and bandwidth controls.
Solution

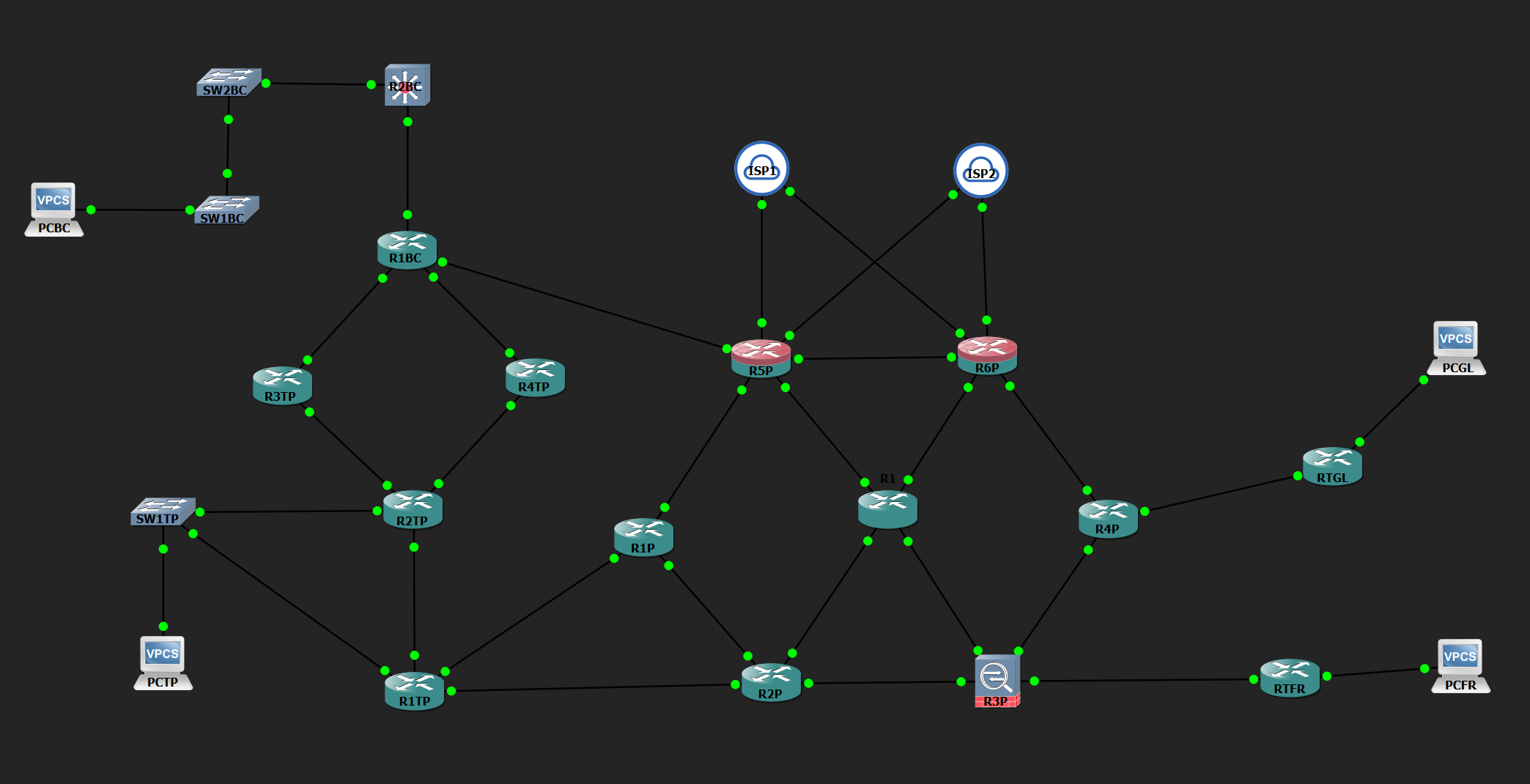

A multi-service architecture was designed using a robust technology stack including Cisco routers and switches. The solution featured a hybrid topology with dynamic routing (OSPF, EIGRP), BGP for ISP peering, and MPLS Layer 3 VPNs for secure client traffic isolation. Gateway redundancy was achieved using GLBP, while security was enforced through ACLs and NAT.
Key Implementations
The implementation featured dual ISP connections for automatic failover, a logical IP addressing scheme for simplified operations, and a multi-layered security approach. Secure MPLS VPNs with VRF and MP-BGP were configured for bank-grade security, and comprehensive testing validated all routing, failover, and security functionalities.
Outcome
The project resulted in a highly resilient and secure network, ensuring business continuity for all clients. It delivered optimal application performance through policy-driven bandwidth management and met strict security compliance standards. The scalable and operationally efficient infrastructure positions XYZ for future growth.
